RACETECH RT9119 Lightweight Racing Seat

RT9119 Lightweight Racing Seat

Building upon the successful 129 series, Racetech offers the same ergonomic form and incredible features, but in a lighter and more affordable package. Used by many professional teams at both national and international level. This is the lightweight version, crafted using a precise recipe of carbon and Kevlar hybrid weave to achieve shell weights as little as 9.9lbs (4.5kg)! There are four sizes available; standard, wide, tall and wide-tall. Customize your seat further with low-base cushions or side cushions for support in the thigh area. 9119 series seats (except the WHR) are compliant with FIA 8855-1999 standards.

Brackets and Mounting:

- Side mount to the floor using Racetech RTB1009M 5mm aluminum brackets (please select above when ordering).

- Back mount using the RTB3115B or RTB2115B in conjunction with RTB2005C. The RTB2115B is a 5mm aluminum bracket that bolts directly to the shoulder beam of the seat. The RTB2005C clamps bolt to the RTB3115B or RTB2115B (once holes have been drilled) and come in 3 variants; either a 11/2 (38mm), 15/8 (41mm) or 13/4 (45mm) ID to suit the roll cage tube diameter in your vehicle. Please select your preferred clamp diameter above when ordering.

* To comply with FIA 8855-1999, the 119 series seats must be back-mounted to the roll cage at shoulder level. Back-mounting can be achieved using parts RTB2115B and RTB2005C, see instructions here. Back-mounting improves seat strength and stability during an impact, increases driver 'feel' and reduces driver fatigue, see the video here.

Application
Common Applications	National to international-level circuit where weight reduction is important
Stock Color / Material
Gel-coat	Clear self-finish
Seat Cover	Black fire-retardant fabric
Wear Patches	Black perforated leather
Technical
FIA Homologation	FIA 8855-1999 Approved (except RT9119WHR)
Shell Construction	Kevlar/carbon
Shell Weight	From 9.9lbs (4.5kg)
Side Mount Hole Centres	295mm
Back Mount Hole Centres	250mm
Bolt Torque (Zinc)	30Nm / 22 ft lb

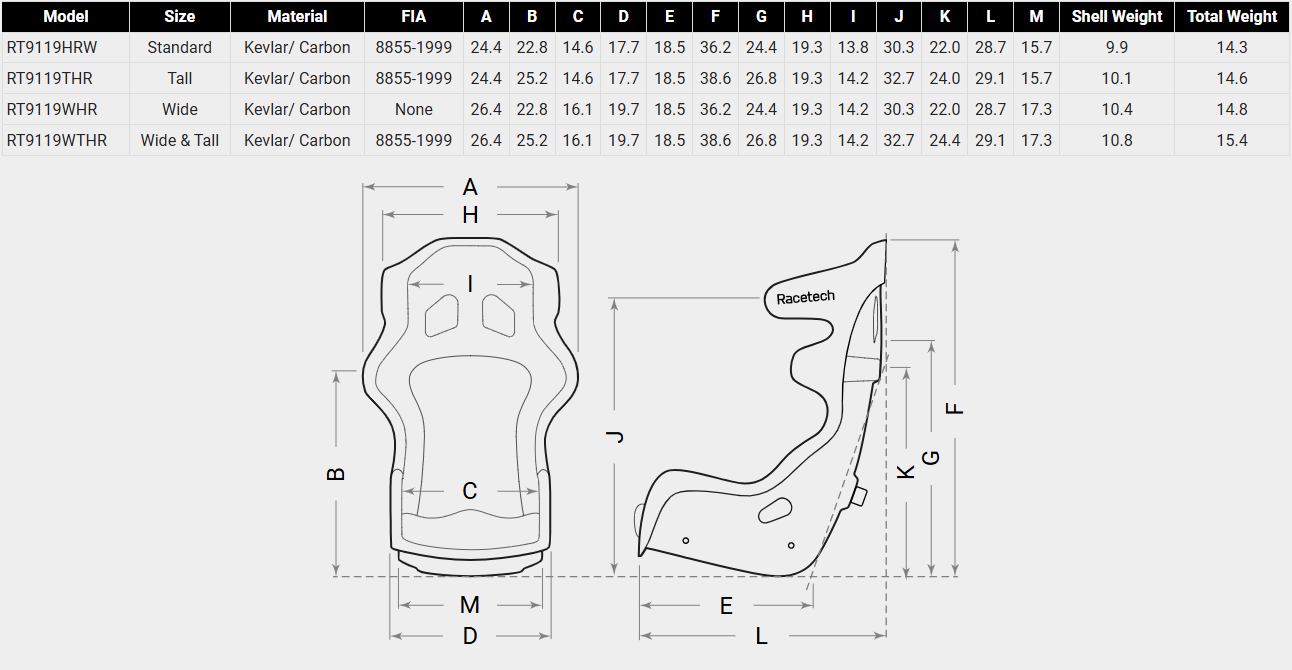

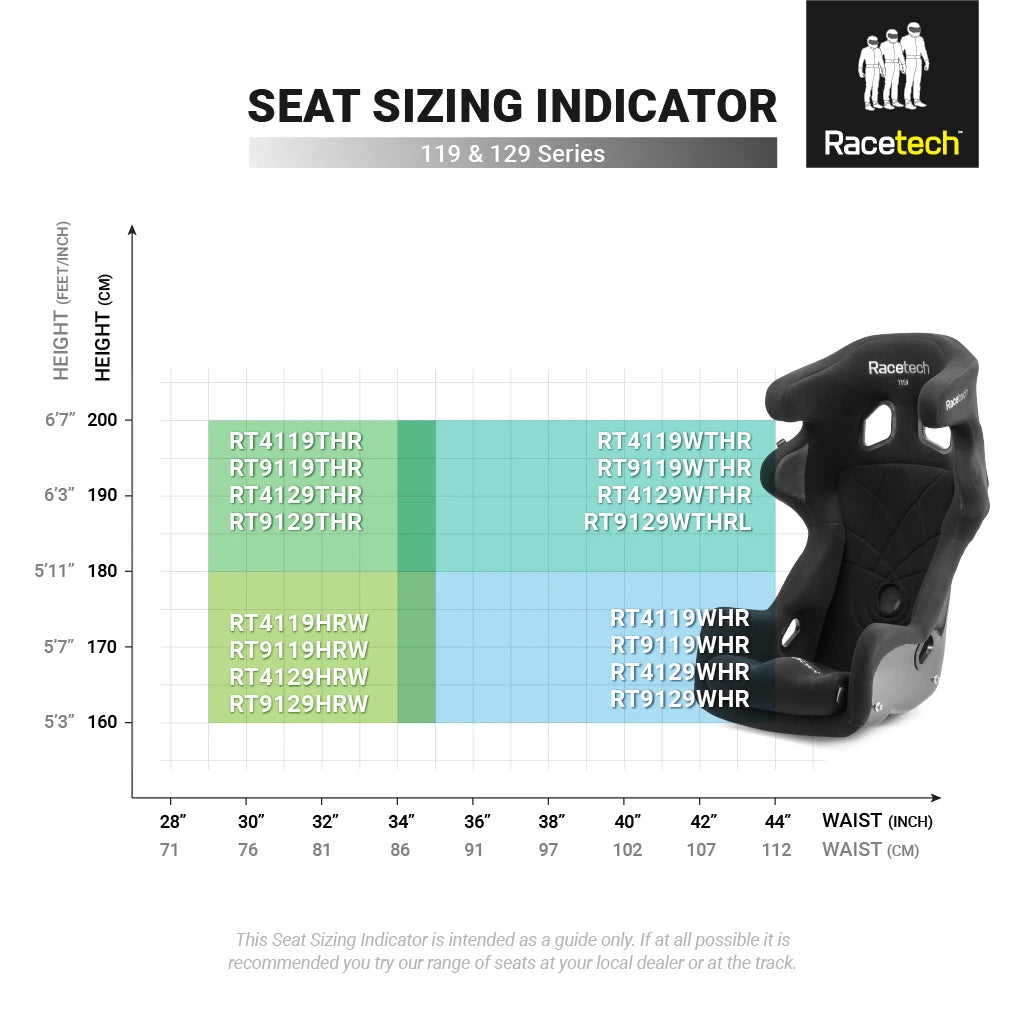

Sizes	HRW - Standard WHR - Wide THR - Tall WTHR - Wide & Tall
Design
Head Restraint	Integrated head restraint
HANS Compatible	Yes
Harness Compatibility	Up to 6-point harness
Large Harness Guides	Yes

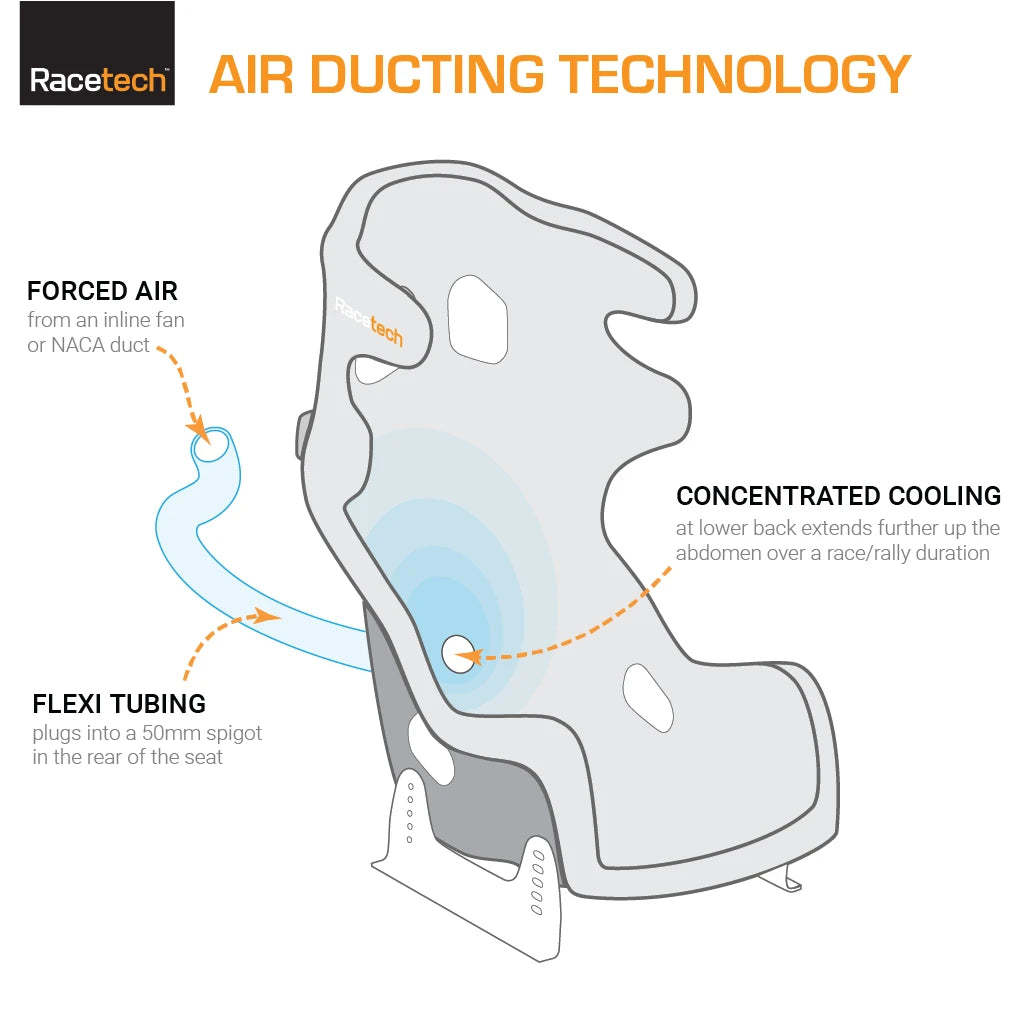

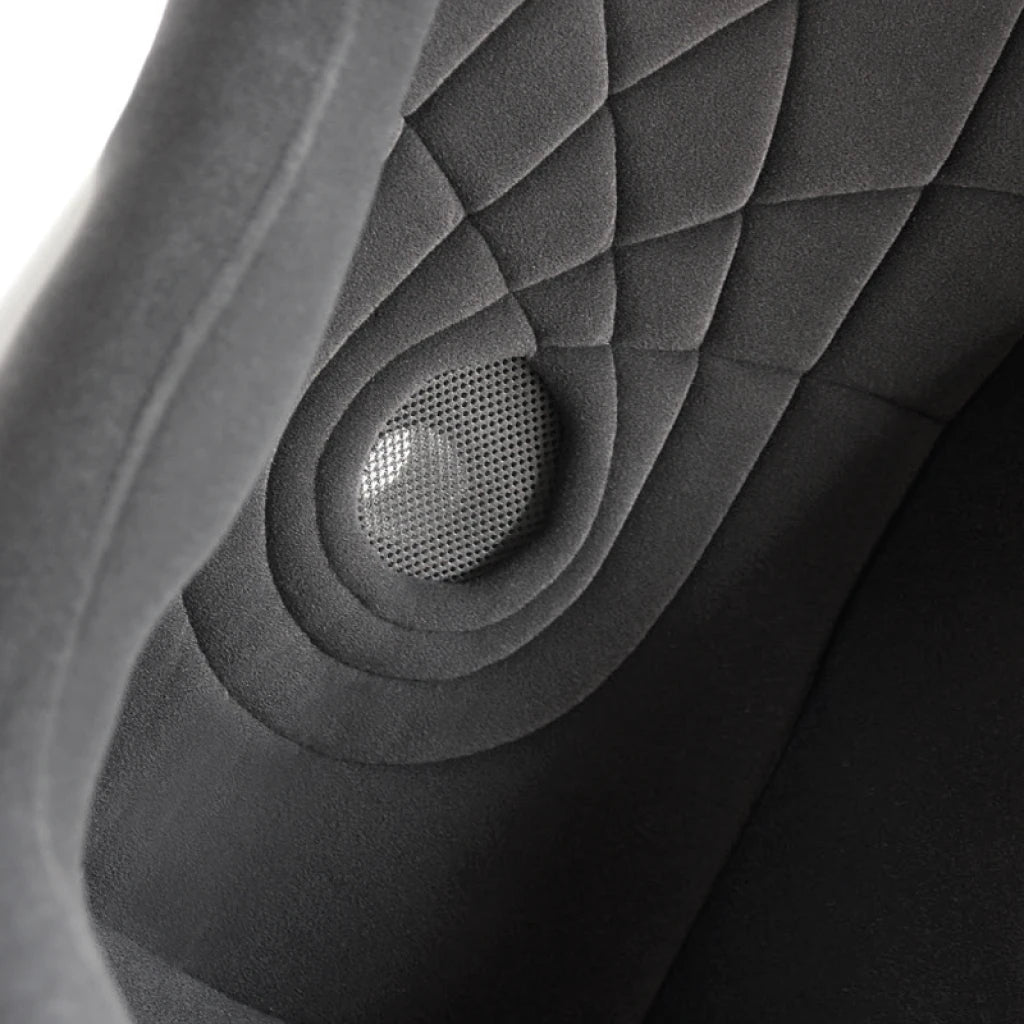

Air Ducting	Yes - vented to the driver's lower back
Back-mount Compatible	Yes
Back-mount Required for FIA Homologation	Yes (except RT9119WHR)
