RACETECH RTB2005C - Alloy Rollbar Clamps
RTB2005C - Alloy Rollbar Clamps

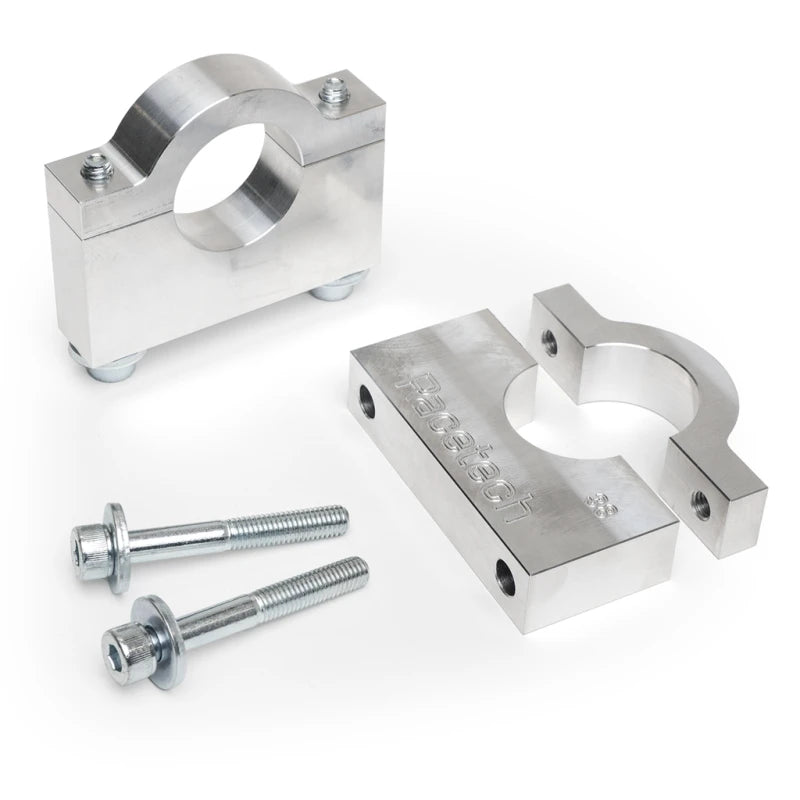

RTB2005C Racetech aluminum clamps for back-mounting seats. Precision cut from a 20mm thick 6061 aluminum sheet. Sold as a pair these clamps fix around a roll cage tube and bolt to the RTB2115B or RTB3115B shoulder bracket. This allows you to effectively back-mount a Racetech 119, 4200 or 4100 Series seat to the chassis/roll cage at the shoulder level. Supplied with 2x M8 bolts and 2x flat washers per clamp.
Size Chart:
Part | Tube Diameter (mm) | Tube Diameter (inch) | |
---|---|---|---|
RTB2005C38 | 38.1mm | 11/2 | |
RTB2005C40 | 40mm | 137/64 | |
RTB2005C41 | 41.3mm | 15/8 | |
RTB2005C45 | 44.5mm | 13/4 |
Dimensions: 90 x 20 x 71mm (L x W x H) (each)
Weight: 0.64lbs (0.29kg) each
Material: 20mm 6061 alloy
Choose options

RACETECH RTB2005C - Alloy Rollbar Clamps
Sale price$169.99
