Name: RACETECH RTB3115B Adjustable Alloy Back Bracket
Brand: RACETECH
SKU: RTB3115B
Price: 119.99 USD
Availability: InStock

RTB3115B Adjustable Alloy Back Bracket

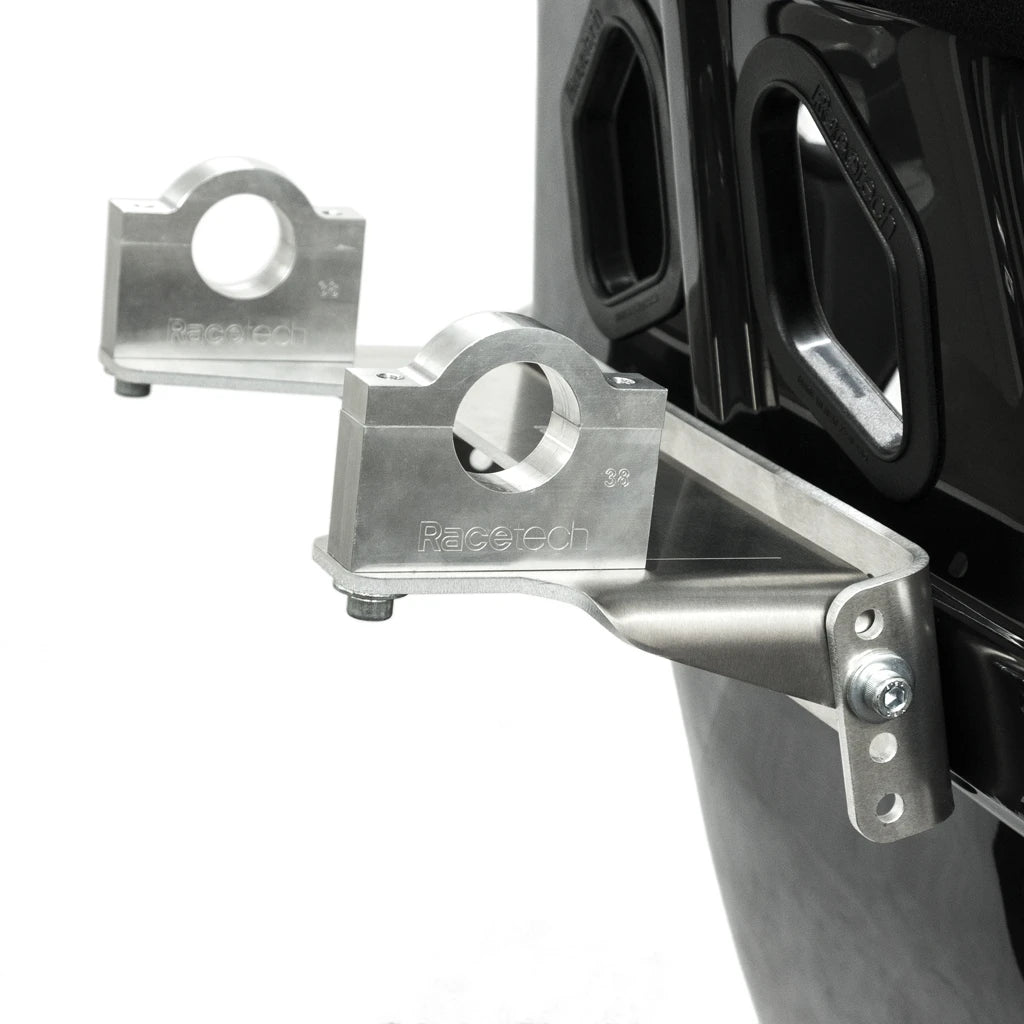

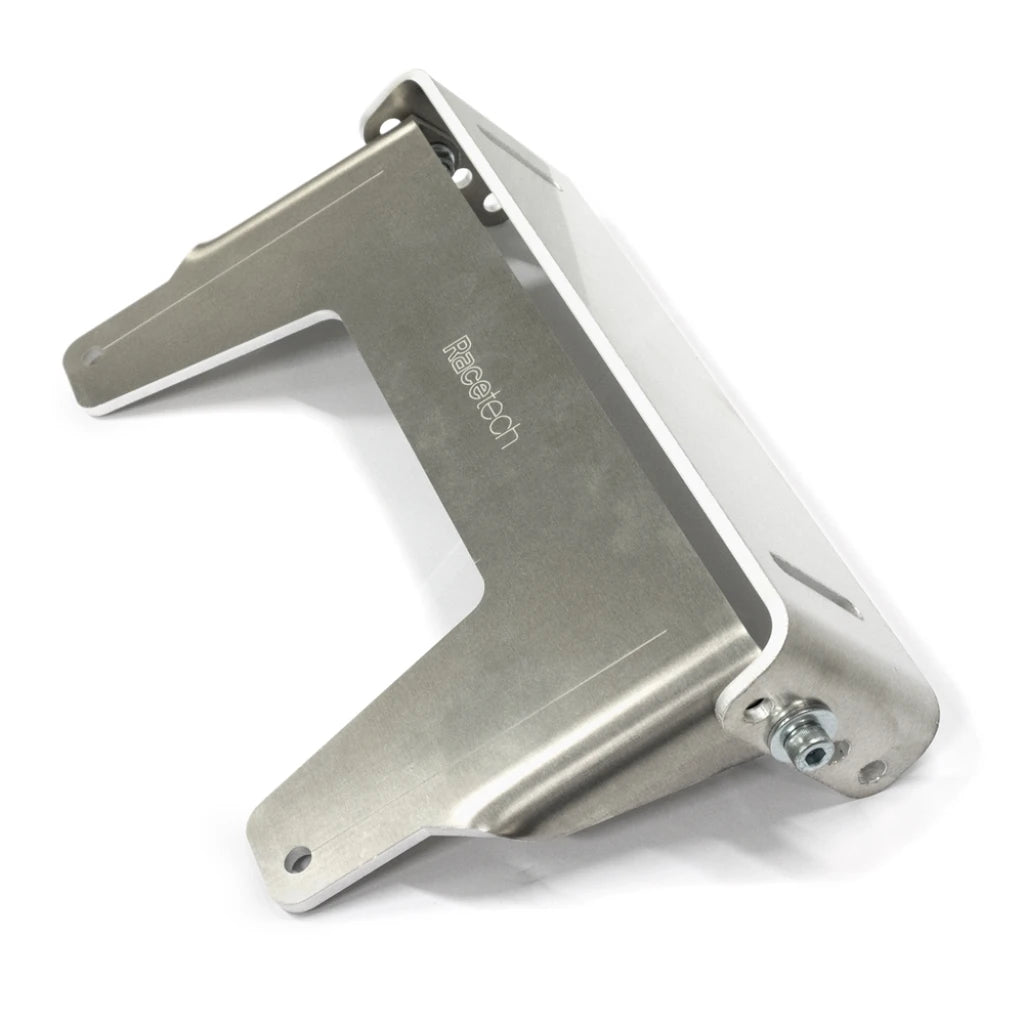

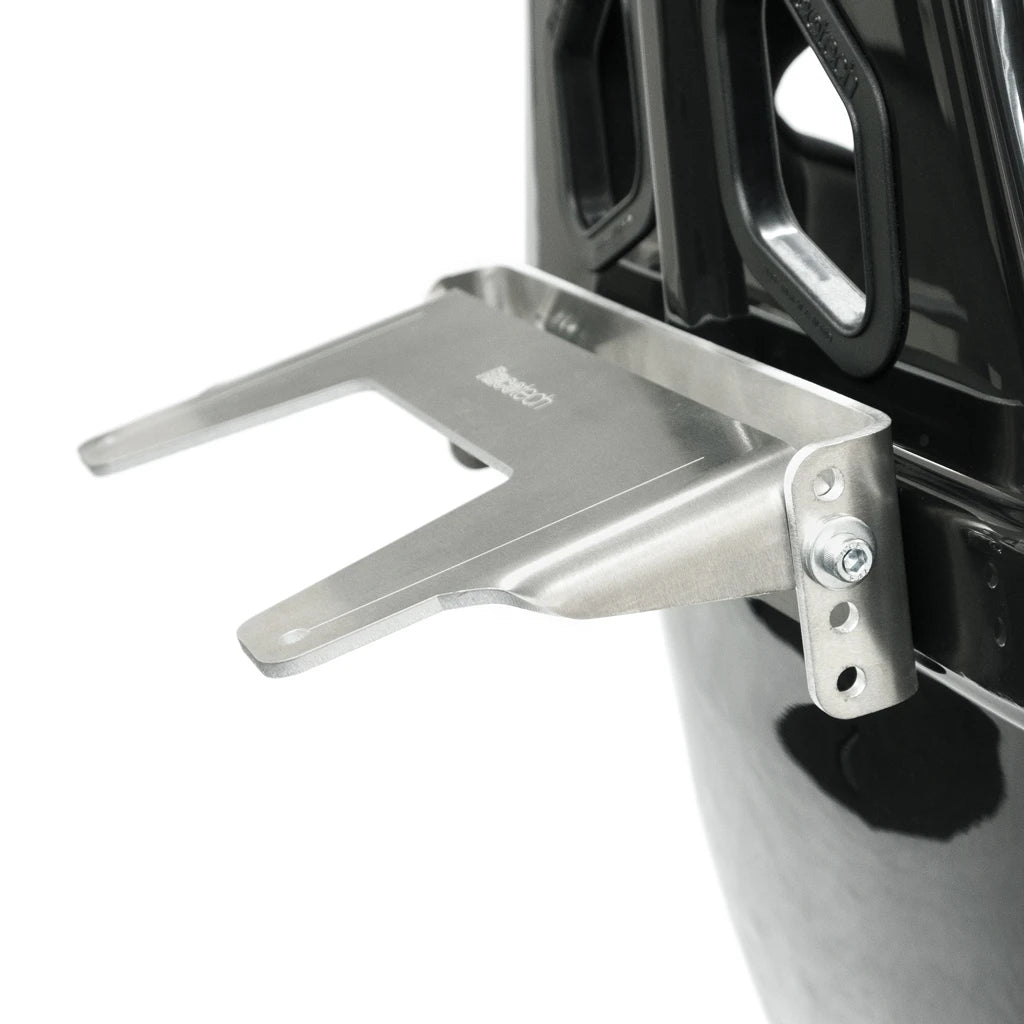

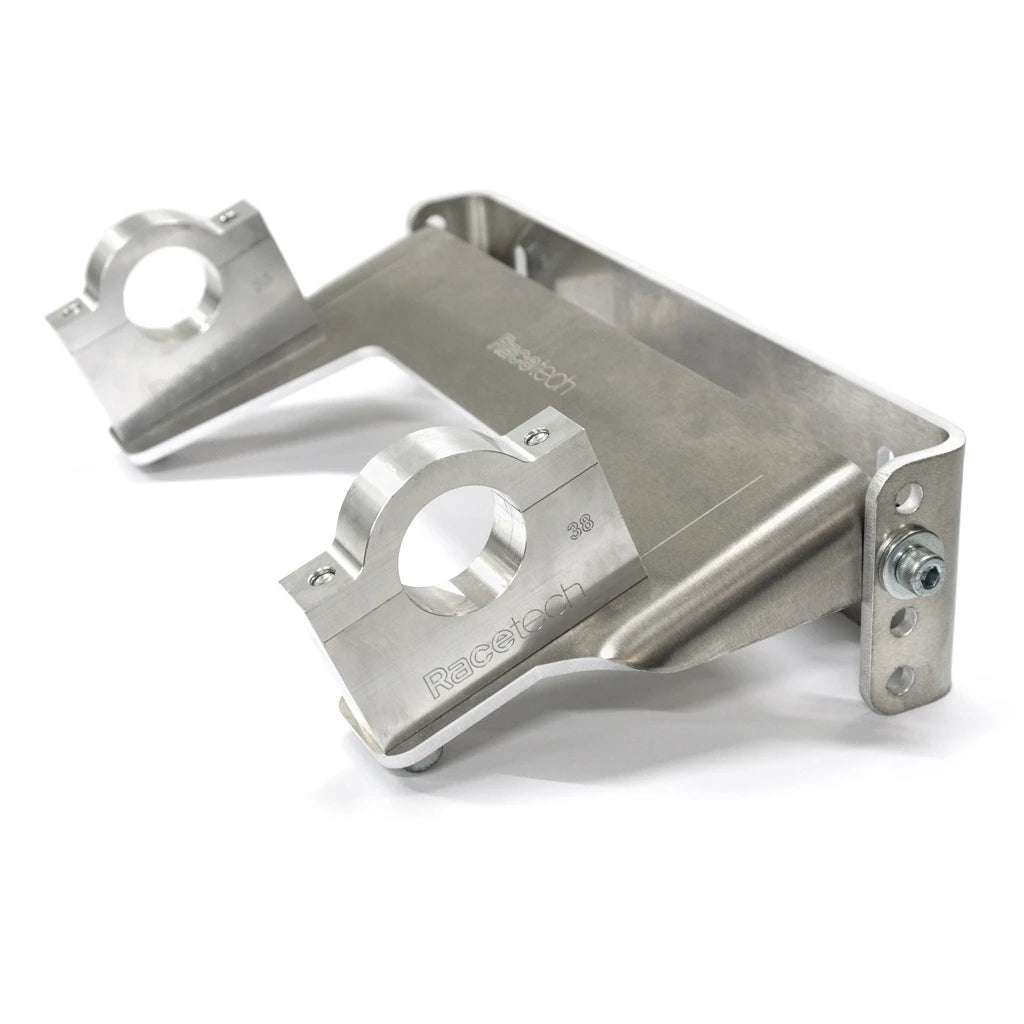

RTB3115B: Racetech 2-piece 5mm aluminum (5083) bracket for back-mounting seats. This reconfigurable, adjustable bracket bolts to the shoulder beam of Racetech 4100 or 119 series seats and allows you to fix the seat to the lateral roll cage tube. If using our RTB2005C roll cage clamps at least two holes must be drilled to bolt on the clamps, once the seat is set up in the optimum position. Etched reference lines are provided as a guide, but holes can be drilled in other locations if required and using engineering consideration.

Maximum Reach (from seat shoulder beam to roll cage, with RTB2005C clamps): 155 - 183mm depending on angle

Maximum Reach (from seat shoulder beam to roll cage directly): 173mm

Compatible with the following Racetech seats:

RT4100, RT4100T, RT4100WT, RT4100HR, RT4100THR, RT4100WTHR
RT4200HR, RT4200THR, RT4200WTHR
RT4119HRW, RT4119THR, RT4119WHR, RT4119WTHR, RT4119W, RT4119WT
RT9119HRW, RT9119THR, RT9119WHR, RT9119WTHR

Weight: 0.90kg (1.98lbs)

Material: 5083 Aluminum

Hole Spacing (Seat): 250mm (9.84 inches)
